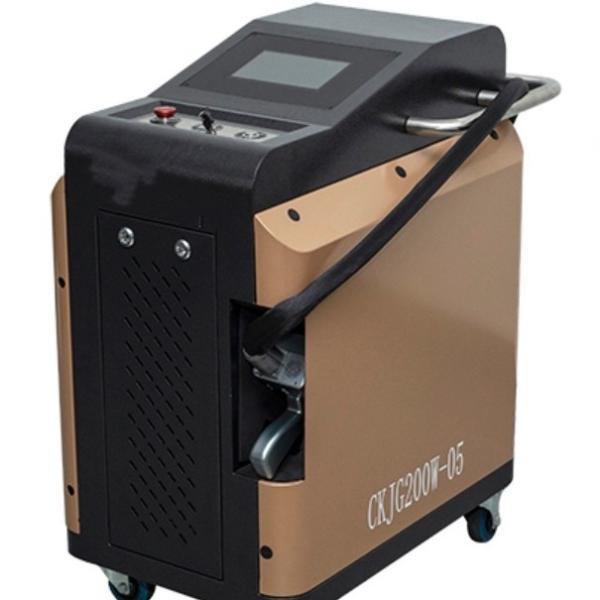

Product Description
The laser cleaning system is a high-tech product of the new generation of surface cleaning. It can be used for a wide range of traditional cleaning processes such as chemistry and grinding. It has the characteristics of no grinding, non-contact, low thermal efficiency and suitable for various materials. It is considered to be the most reliable. The most effective new generation cleaning solution.
Technical Advantages
1. Clean or remove the surface paint layer quickly and cleanly;
2. Accurate cleaning and paint removal effects;
3. no damage to the substrate;
4. Fast investment recovery;
5. No need to sand grit or chemical;
6. The equipment does not need to be set up;
7. There are no maintenance requirements.
Parameters
| Characteristic | Test Conditions | Minimum Value | Typical Value | Maximum | unit |
| Working Mode | pulse |
| Output Power 70W | 100% power output | 98 | 100 | 105 | W |
| Central Wavelength | 100% power output | 1060 | 1064 | 1068 | nm |
| Preheating Time | Achieve operation | 10 | | | S |
| Completely stable | 3 | | | min |
| Machine Power Consumption | 480W(AC110V or 220V) |
| Total Weight | 87 | Kg |
Product Performance Table
| Base Metal | Surface | Effective Focal Depth(mm) | Standard Cleaning Efficiency MM²/s | High-speed Cleaning Efficiency MM²/s | Effect |
| Cast Iron | Heavy rust (0.08mm thick) | ＞35 | 2000 | 3000 | Clean surface, no damage to the base metal |
| Stainless Steel Plate | Surface oil, slightly rust | ＞50 | 2000 | 3000 | Clean surface, no damage to the base metal |
| Aluminum Plate | Oxide/surface contamination | ＞35 | 1500 | 2000 | Clean surface, no damage to the base metal |
| No putty paint layer | White pigmented paint (0.1mm thick) | ＞20 | 2000 | 3000 | Clean surface, no damage to the base metal |
Note: The above performance parameters are standard test data, and the data will be different due to the complexity of the actual application.

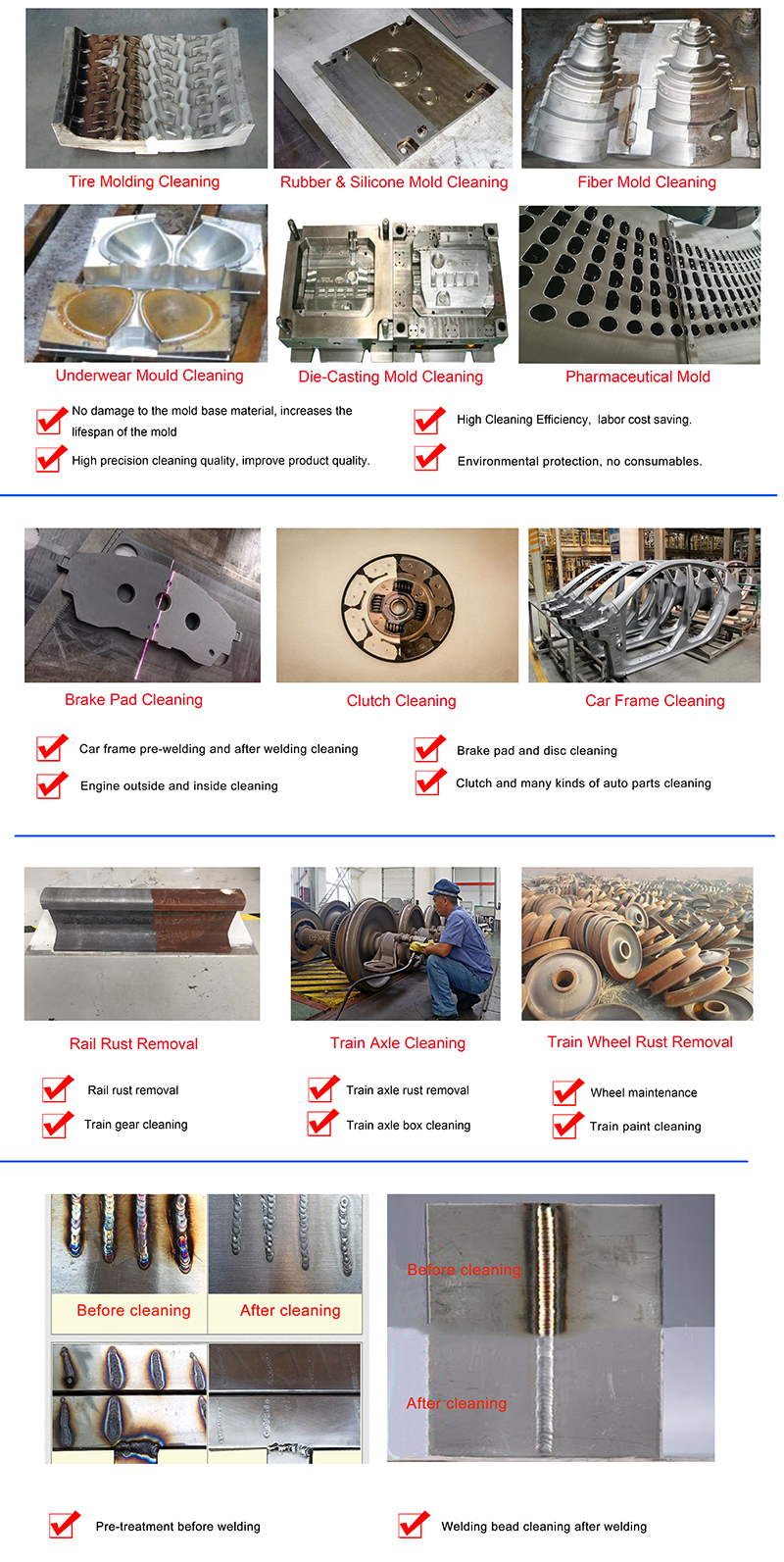

Samples
FAQ
Q1: I do not know about this machine, is it suitable for me to clean my workpiece?
A: We will help you and give you the suggestion, you can share us what material of your workpiece and what impurity will you clean and the impurity thickness.
Q2: What’s package, will it protect the products?
A: we have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q3: What payment terms can you accept?
A: Any payment is possible for us, like TT, Western Union, Cash etc.
Q4: If some problems happen to this machine,what should I do?
We provides one year warranty and lifetime maintenance. Free repair for mechanical failure and parts damage (no human factors and force majeure factors) under warranty (replacement parts except wearing parts are provides by Horizon Laser free of charge). Charging at cost when out of warranty.
